Products Overview



Transponder Programmer

The device is intended for programming of transponders, that are a part of automobile immobilizing systems. Unlike the previous model the Gambit, new model Tango is the two-band device that has allowed to add the list supported transponders with firm Texas Instruments products (Tiris ©).

+ Main Features

  • Toyota/Lexus Smart Key Systems OBD Framework
  • Toyota G Immobilizers OBD Reset & Add Key (including EU type)
  • Toyota/Lexus H Keys Image Generation Page1 39, 59, 5A, 99 on TRPWS21 transponder
  • Toyota/Lexus G Keys Image Generation and Clonning Page1 36,56,96,37,57 on LKP-02,CN5
  • Toyota/Lexus/Subaru SmartKey Reset (40/80/128bit)
  • FREE Off-line Full Copy of TIRIS DST (ID60-70) onto TPX2,EH2,CN2,CN5,LKP-02
  • FREE Image generator ID70 on ID4D
  • Image generator ID67/68 on ID4D
  • Full FREE production of TP22, TP23, TP24, TP25
  • Free write Component Security 7 bytes Tool (Megamos48)
  • Over 1138 Key Makers, 790 included with basic software
  • In-depth Manual and Technical Support Provided
  • Searching of the 7th byte by existing car's key(Megamos48)

+ How to install?

  • Download the software files on your desktop.
  • Double click on the Tango software installation file (.exe).
  • Select language and click Ok.
  • Click Next.
  • It's recommended to leave the installation path as it is and click Next.
  • You can change the name of the shortcut in your start menu. Click Next.
  • Check the checkbox Create a desktop icon for easier access and click Next.
  • Wait for the installation.
  • Deselect Launch Tango and click Finish.
  • Go to the folder, where you just installed your Tango Software.(Default : My Computer > Local Disc(C:) > Program Files (x86) > Tango Scorpio-LK).
  • Open the Driver folder.
  • Choose your operating system type and open the folder.
  • Right click on the ftdibus and choose Install.
  • Click Ok to finish the driver installation.
  • Go to your desktop and right click on the Tango software's shortcut.
  • Choose Run as administrator.
  • When the Software starts click Update on the Online Update window to update your Tango Software.
  • Click Ok and wait for the update to complete.
  • Your Tango programmer is now ready for work! For video Tutorial on How to install Tango Software check on the section above.




Barracuda programmer manifactured by Scorpio-LK is a new platform which is intended to complement Tango programmer in our pursuit to release solid solutions for locksmiths and users working in the sphere of automotive repairs and vehicles maintenance.

+ Main features

  • Barracuda base hardware
  • Barracuda base software
  • Barracuda database HITAG reset module 1
  • Adapter PCF (in-circuit & expansion)
  • Barracuda cable PCF 1 (in-circuit,2xCrocodile clips, 2xSoldering tips)
  • Barracuda cable PCF 2 (in-circuit, 2xCrocodile clips & 2xProbe needles)
  • Adapter PCF 7941 (for soldering)
  • Adapter PCF 7945AC (for soldering)
  • Adapter PCF 7952 (for soldering)
  • Adapter PCF 7953/45 (for soldering)
  • Adapter PCF 7953 38pin (for soldering)
  • Adapter PCF 7961 (for soldering)

+ System requirements

  • Barracuda programmer
  • Windows XP/7/8/10
  • PC/Laptop
  • Power supply adapter 9-24V DC plug size 5.5x2.1mm (not included in base version)
  • USB 2.0/3.0

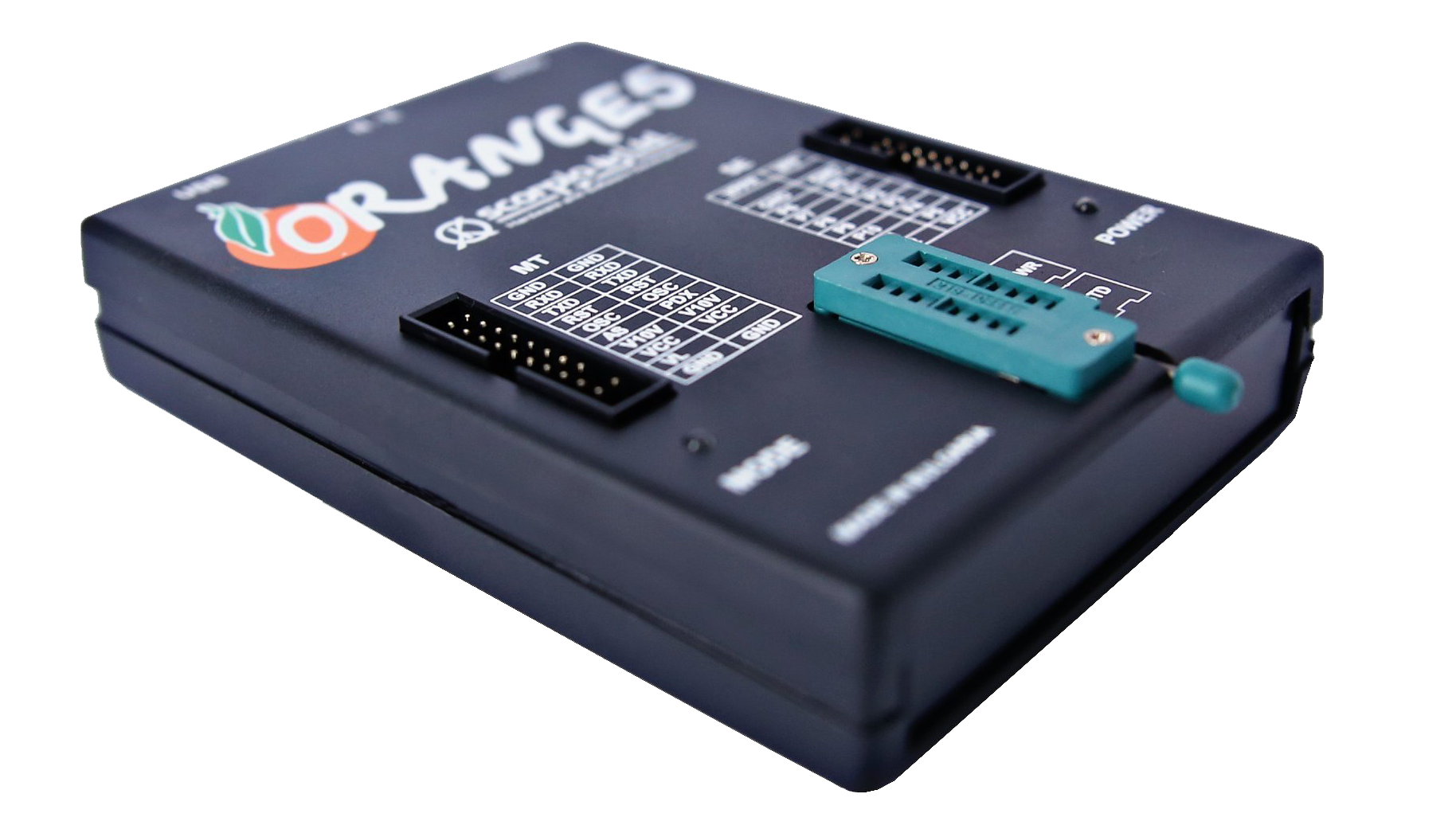

Orange 5 Base

Universal EEPROM & MCU Programmer

Orange5 is a professional programming device for memory and microcontrollers.
Unique feature of the current series programmers is built-in macrolanguage for writing down protocols, which gives fast and easy capability to add new types of microschemes, precisely meeting manufacturers' requirements to read/write algorithms.

+ Technical Info

  • USB power supply (USB2.0/3.0).
  • Universal easy to plug panel ZIF16 for EEPROM
  • Control of contacts in the sockets
  • Two expansions compatible with Orange4 and Omega MTRK
  • Protection against overcurrent
  • Overload voltage protection
  • Two types of power supply: Standart (USB) and enhanced (USB + external power supply)
  • Three 3 adjustable voltage and current control: Voltage of power supply ( 2.0...5.0V ), programming voltage (2.0...21.0V), additional static 10V for microcontrollers.
  • High-speed bidirectional pin drivers with adjustable voltage (2.0...5.0V)
  • Wave cycle generator with frequency ( up to 24 Mhz) and out voltage(2.0...5.0V) adjustment.
  • Capability of functional emulation of class CDC USB devices.
  • Built-in 32-bit virtual machine
  • Supported interface: I2С, SPI, MicroWire, JTAG, UART, BDM, ISO7816, K-LINE (via adapter), CAN (via adapter).
  • Programmer is encolsed in a functional box.
  • Supported working under Windows XP/7.

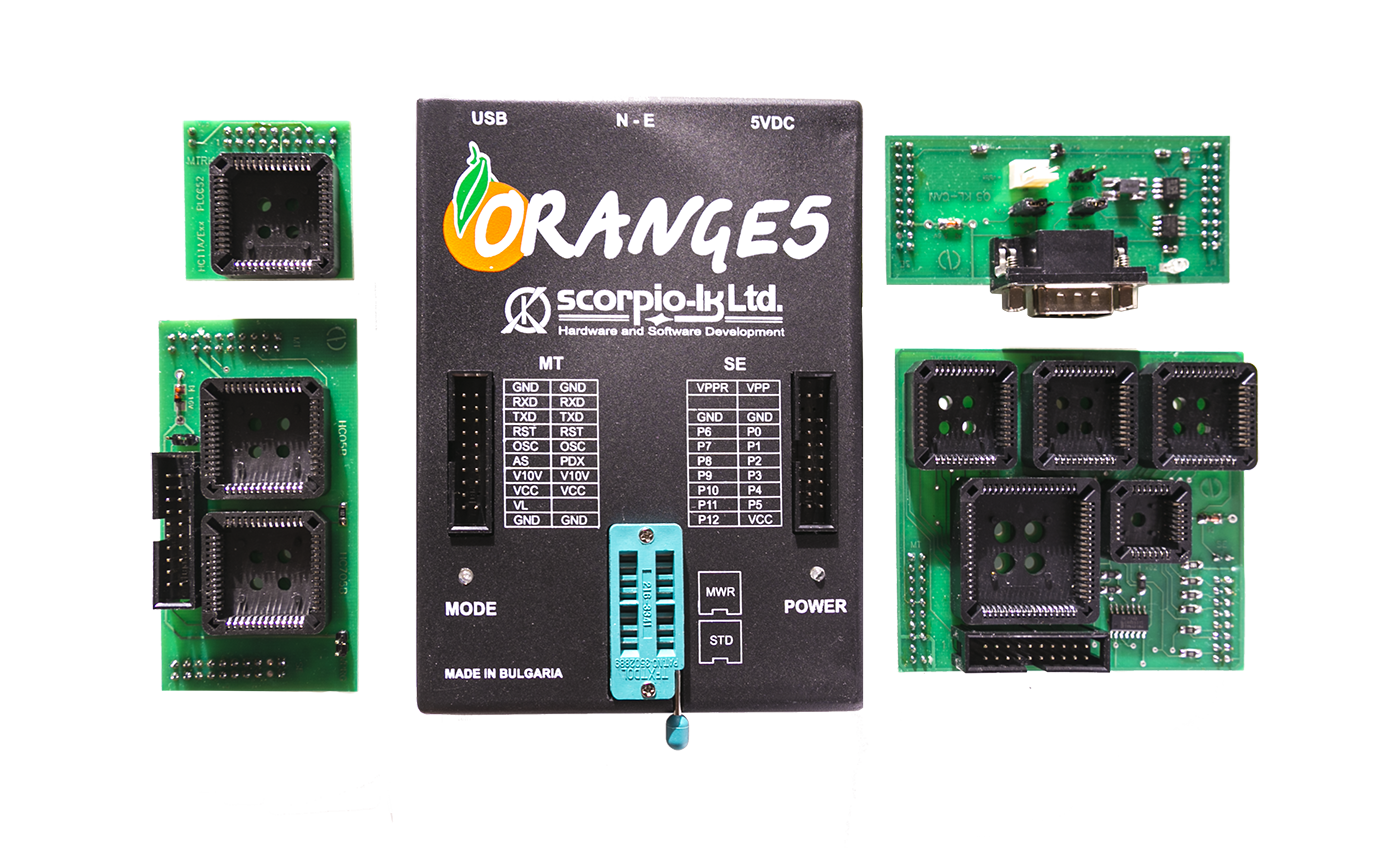

Orange 5

Orange5 includes Orange 5 Base Package, additional software, adapters and accessories. If you need specific setup of adapters please contact us.

+ Additional software

Please visit scorpio website

+ Additional Adapters

Please visit additional adapters

+ Adapter Schematics

Please visit scorpio website



Software Immo HPX Plus

Software Immo HPX Plus provides lockmiths with show-how to connect MCU and EEPROMs to additional adapters and Orange 5 Universal EEPROM & MCU Programmer.
